Products and Things > Phones > Samsung SCH-LC11 LTE 4G WiFi Hotspot
Samsung SCH-LC11 LTE 4G WiFi Hotspot
Samsung SCH-LC11 is a portable WiFi device that support CDMA (3G) and LTE (4G) over the Verizon network and supports up to 5 devices via WiFi.
Basic Specs
- Dual Mode 4G LTE (700MHz) and CDMA 1xEV-DO Rev. A/Rev. 0: 800/1900 MHz
- MDM9600 chipset and a 4G SIM card
- VPN compatible
- WiFi support for 802.11 b/g/n
- MicroUSB Charging Port
- Battery 1500mAh with up to 216 minutes of use and 9 hours standby.
- 2.32″ x 3.54″ x 0.45″ and weighs 2.7 ounces
- Connects with Up to Five Wi-Fi® Enabled Devices
- SAR:1.13W/kg – Body
- Doesn't want or need VZaccess software! All admin is done via Web Gui via the WiFi connection.
Includes:
- Standard Lithium Ion Battery
- Wall/USB Charger
- Important Consumer Information Brochure
- Product Safety & Warranty Brochure
- Quick Reference Guide
They offer an extended battery ($33 not sure of capacity), extended battery cover ($3.74), chargers etc as well.
GUI Admin Screen Shots
Some screen shots of the Web GUI Administration screens.
- WiFi Configuration
- TCIP Configuration
- DHCP Server Configuration
- Administration Password
- System Information
- Modem Info Data
- Global Traffic Counters
Manual
Manual is available finally. A copy of it is available below:

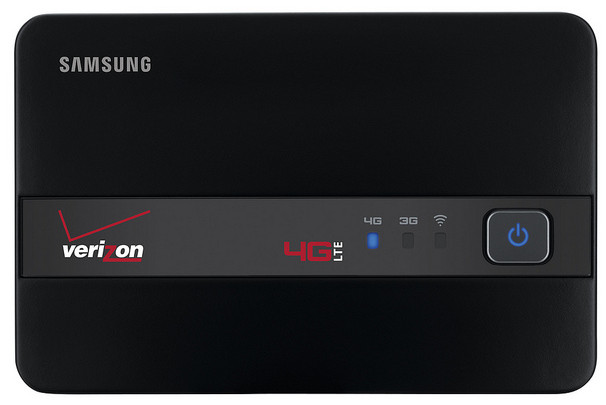

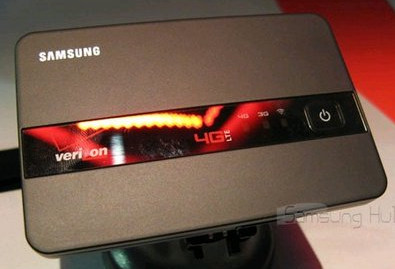

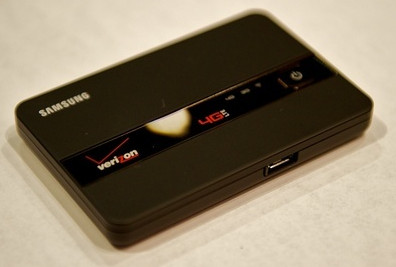

Some Images
